380VAC 3P 40A RCCB for protecting the motor

Name: 380VAC 3P 40A RCCB for protecting the motor
Brand: Kampa
Price: 4.88 USD

Wholesale 380VAC 3P 40A RCCB for protecting the motor from china suppliers

Place of Origin : Zhejiang, China

Brand Name : Kampa

Model Number : KPID-125 40

Product name : 380VAC 3P 40A RCCB for protection the motor

Characteristic Curve : C, B

Breaking Capacity : 6ka

Standard : IEC/EN60947

Type : residual current, Residual Current

Pole : 2P, 3P, 4p

Current : 20A/32a/40a/50a/63a/125A

Delivery Detail : 5 days

Color : WHITE

Protection Degree : IP20

Poles Number : 3

Packaging Details : Standard Export Carton

Port : NINGBO

Supply Ability : 90000 Set/Sets per Month

MOQ : 500 Pieces

Price : $4.88 - $7.50/Pieces

Contact Now

380VAC 3P 40A RCCB for protecting the motor

1. Introduction of Residual Current circuit breaker

Ea 9 Series Residual Current Circuit Breaker (without over- current protection) is suitable for the line of AC50/60Hz, voltage 240V(2 pole)/ 415V(4 pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value it will cut off the power rapidly to protect human safety and prevent the accident from the current leakage. It is applicable to industrial area, commercial area, tall building and civil house.It complies with standard IEC/EN 61008.1 and GB1696.1

And this RCCB B circle is available.

Parameter as below:

Frame class	63A
Rated working voltage	240/380/415V
Rated frequency	50/60Hz
Rated working current	6, 16, 20, 25, 40, 63A, 80A, 100A, 125A
Rated residual operating current	10mA, 30mA, 100mA, 300mA, 500mA
Rated residual un-operating current	15, 50 , 150 , 250mA
Sensibility	A& AC
Maximum operating time	IΔn t ≤ 0.1s, 5I Δn t ≤ 0.04s
Rated making and breaking capacity	ln≤50A 500A, ln≤63A 630A
Limiting value of un-operating current	6ln
Rated limiting short-circuit current	6000A/10000A
Pole No.	2P, 3P, 4P
Mechanical life	20000
Electric life	4000

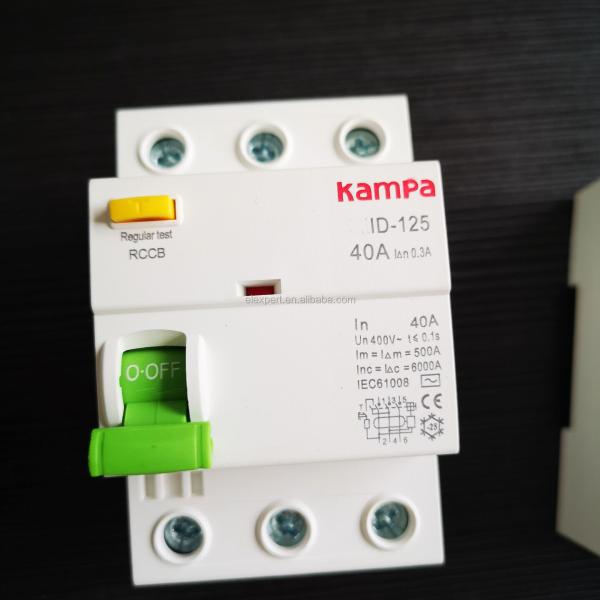

2. Pictures of Residual Current circuit breaker

380VAC 3P 40A RCCB for protecting the motor

Can used with the below product together (if you also need, you can choose)

3. Production Line of Product

380VAC 3P 40A RCCB for protecting the motor

4. More Product for You to Choose

380VAC 3P 40A RCCB for protecting the motor

5. Packing of Product

380VAC 3P 40A RCCB for protecting the motor

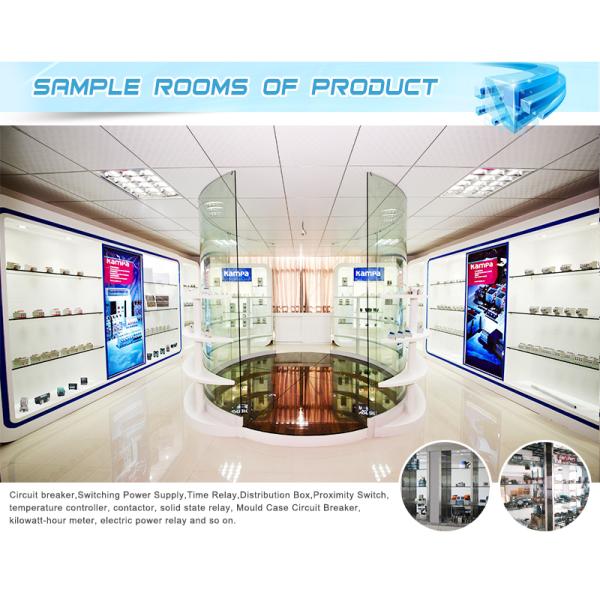

6. Sample Rooms of Product

380VAC 3P 40A RCCB for protecting the motor
