LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

Model Number : LJ8A3-1.5-Z/AY

Type : Inductive Proximity Sensor

Place of Origin : Zhejiang, China

Brand Name : Kampa

Usage : Position Sensor

Theory : Inductance Sensor

Output : Switching Transducer

Description : Proximity Sensor

Detection Objects : Metal

Sensing Surface : Flush

Size : M8

Output Type : PNP NC

Detection Distance : 1.5mm

Material : PBT and metal

With Cable : 2m

Application : Industrial Automatic

Packaging Details : 1~10pcs in box and batch in carton

Port : None

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 50 Pieces

Price : $1.50 - $2.20/Pieces

Contact Now

Product Show

LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

Product Description
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch
DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
1.Model Number Structure
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
2.Technical Specification
Model: M8
Output Form: DC NPN NO LJ8A3-1.5-Z/BX
NC LJ8A3-1.5-Z/AX
NO+NC LJ8A3-1.5-Z/CX
PNP NO LJ8A3-1.5-Z/BY
NC LJ8A3-1.5-Z/AY
NO+AC LJ8A3-1.5-Z/CY
2-wire NO LJ8A3-1.5-Z/EZ
NC LJ8A3-1.5-Z/DZ
AC 2-wire NO LJ8A3-1.5-J/EZ
NC LJ8A3-1.5-J/DZ

Sensing Surface:

Standard Detecting Object:

Detection Distance:

Frequency:

Non-flush Type

12*12*1mm metal

2mm±10%

1000Hz

 Flush Type

8*8*1mm metal

1.5mm±10%

1500Hz

Frequency:

 AC: 20Hz
Detection Object: Magnetic metal
Voltage Supply: 10~30VDC, 90~250VAC
Static Operating Current: <10mA
Full-load Current: DC: ≤200mA, AC: ≤300mA
Output Indication: green LED,360°visible
Power Protection:

DC:reverse protection,short-circuit protection

AC:surge protection
Withstand Voltage:

1500V/AC 50/60Hz 1min

Ambient Temperature:

Storage Temperature:

Ambient Humidity:

-20 ~ +70℃

-30 ~ +80℃

35~95%

Insulation Resistance:

≥50MΩ

IP Grade:

IP67

Material:

brass nickel-plated case,

PBT detection surface,

PVC cable
3.Features
—— Good quality, good sensing performance, anti-interference and stable output.
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

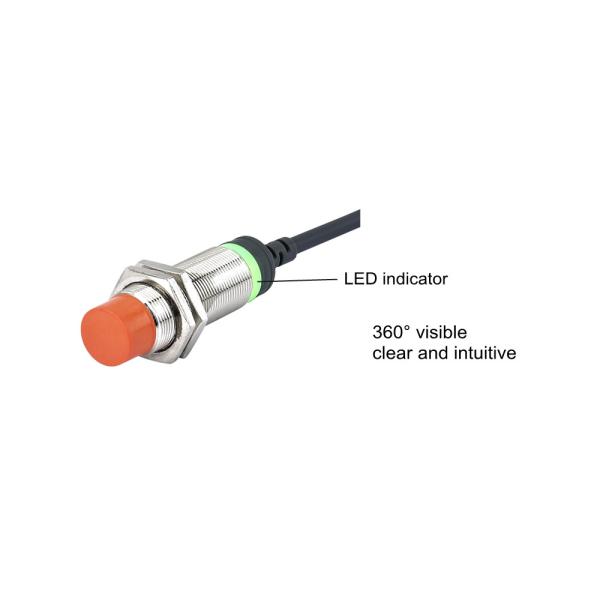

—— LED (green light) indicator to show the output, 360° visible, clear and intuitive.
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
—— Two types available, different sensing distance: non-flush type(2mm), flush type(1.5mm).
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
4.Dimension
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
